Floating Shelf Bracket (FSB)

A modern alternative to traditional shelf brackets, designed to create a clean, seamless floating shelf appearance in retail environments.

FSB Key Features

  • No visible brackets – true floating shelf appearance
  • Clean, premium retail aesthetic
  • Continuous load distribution across the pane
  • Strong and stable underload
  • Suitable for modern retail environments

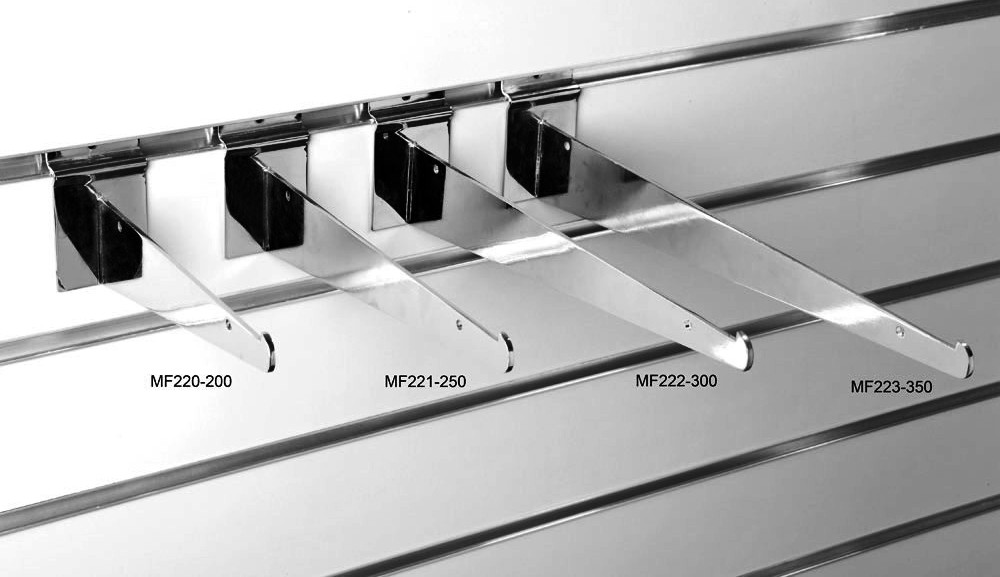

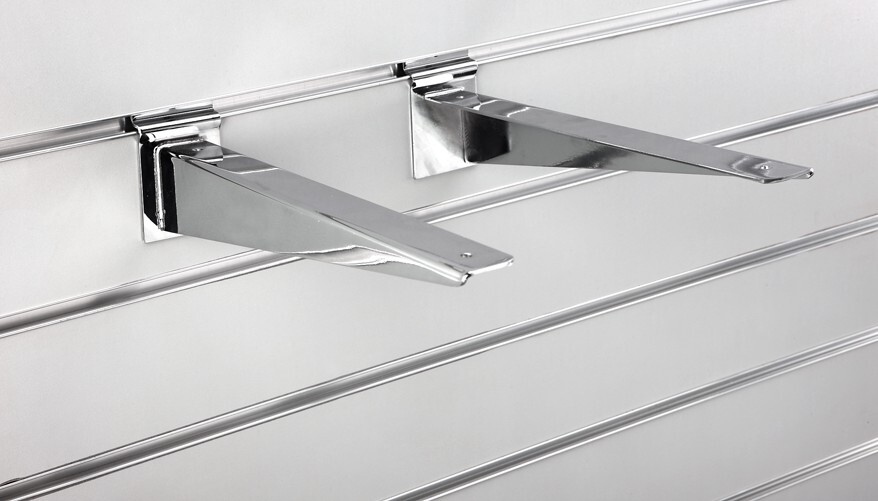

Traditional Brackets

  • Visible support arms
  • Bulky appearance
  • Point-load stress
  • Interrupts display flow

A Superior Alternative to Traditional Brackets

4a48738e2312db3a0535c89d83964ceb6e2abc17
03 MF224 220 HD Shelf Bracket 1

How It Works

  • Dual support system (insert engagement + compression)
  • Load distributed across the panel
  • Secure and stable underload

Each product includes an integrated silicone retention strip, which prevents shelf slip under load, a critical advantage over standard bracket systems.


Shelf Retention Feature:

  • Integrated leading-edge silicone strip
  • Prevents shelf movement under load
  • Enhances stability for glass and MDF shelves
583c0f80386eb211028c55fcb72112afde40683e
ab7e062d81ac3ef971ead42e3ad1038bc14d3ac2

Load ratings based on Maximum Recommended UDL. PVC insert systems require de-rating (×0.47)

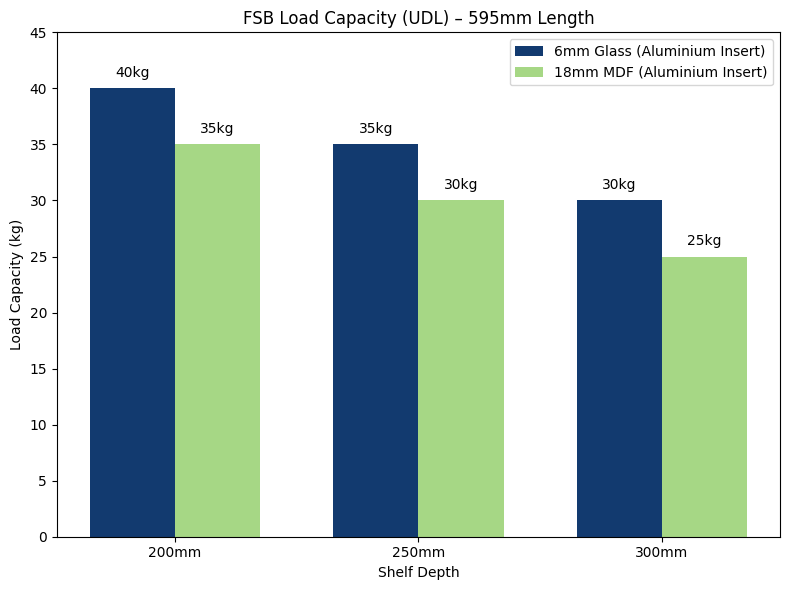

Load Performance (UDL)

  • Engineered for Uniformly Distributed Load (UDL) across the full shelf width
  • Eliminates point-load stress found in traditional brackets
  • Optimised for aluminium insert slatwall systems

Key Load Example (595mm span):

  • 200mm depth: up to 40kg (glass) / 35kg (MDF)
  • 250mm depth: up to 35kg (glass) / 30kg (MDF)
  • 300mm depth: up to 30kg (glass) / 25kg (MDF)

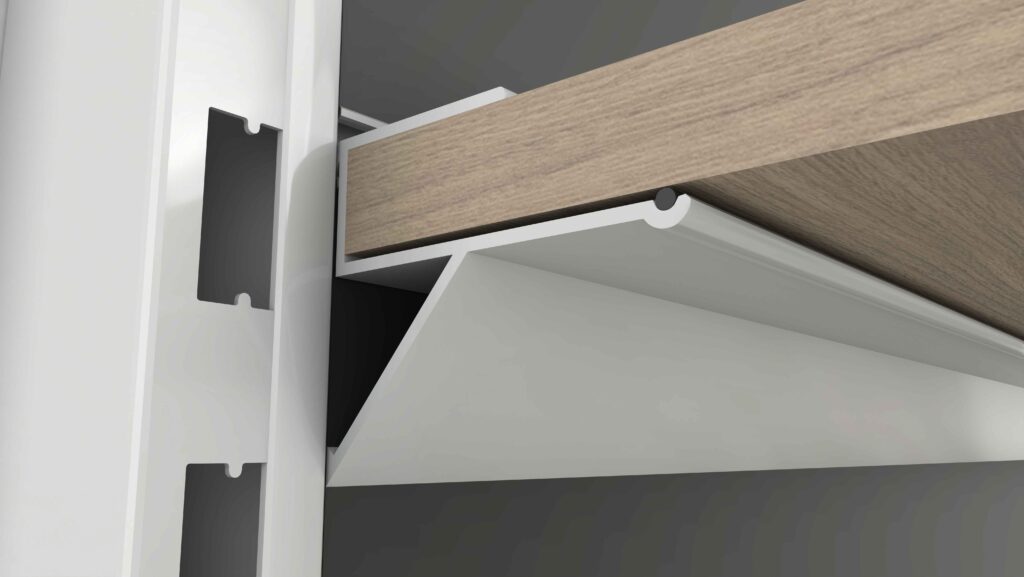

Features Detail

  • Integrated support profile
  • Clean front edge detail
  • Secure shelf positioning
  • Each product includes an integrated silicone retention strip, which prevents shelf slip under load, a critical advantage over standard bracket systems.
08 Floating Shelf View 2 Rev A 11zon 1

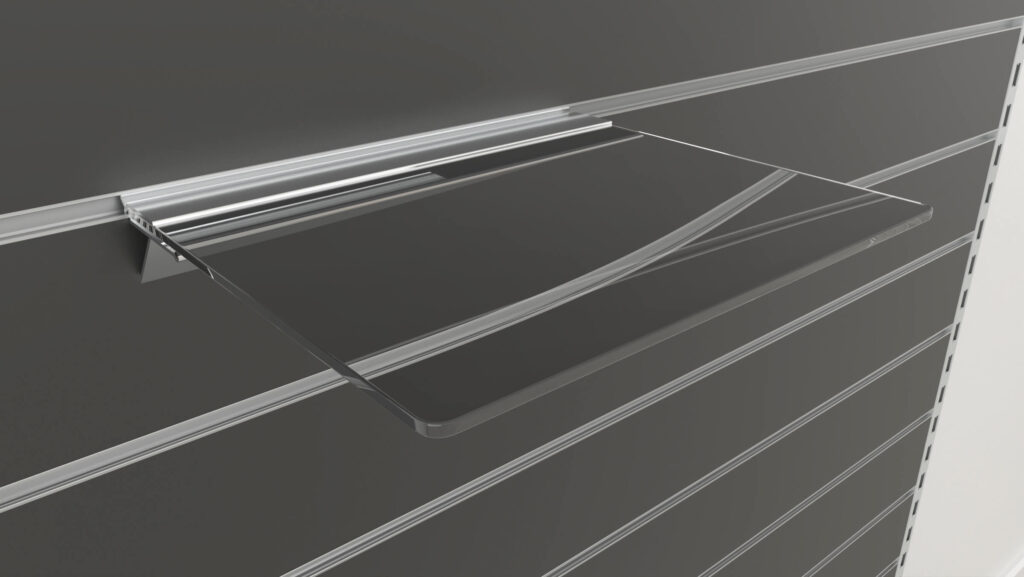

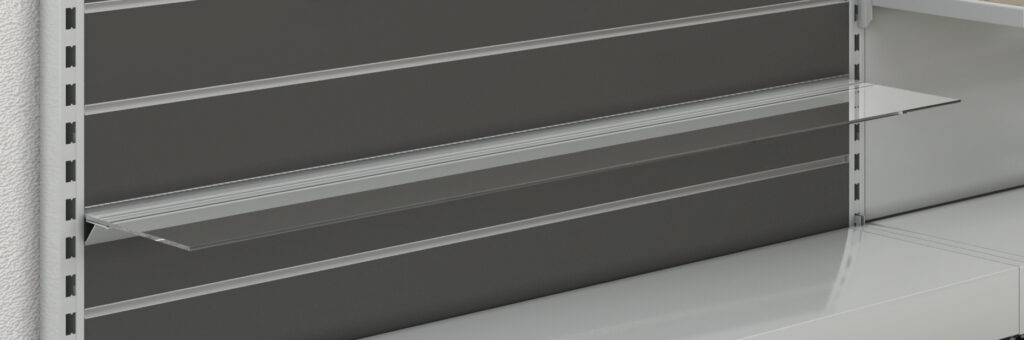

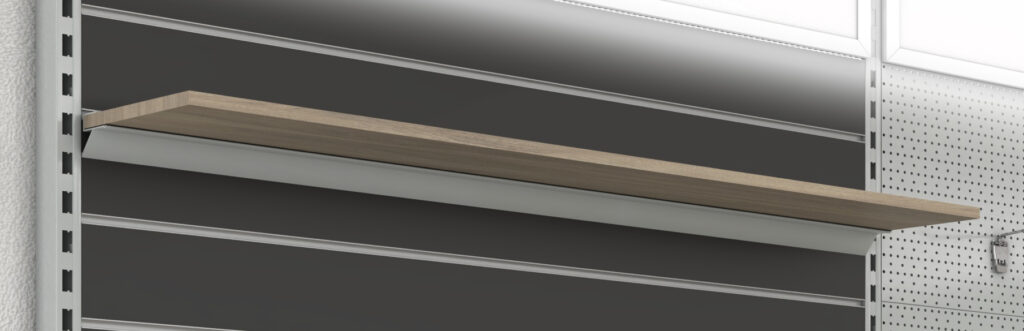

Compatability

The FSB will accept both 18mm MDF and 6mm Glass shelves. The FSB can be installed into MDF Slatwall and Metal Slatwall. Standard lengths of 1195mm and 595mm.

94047aff7e59a4b9e9c1ade5e43200d6267adf3e
d392d67c691cd08162554e3f0100f6f0ec46c6b7
2

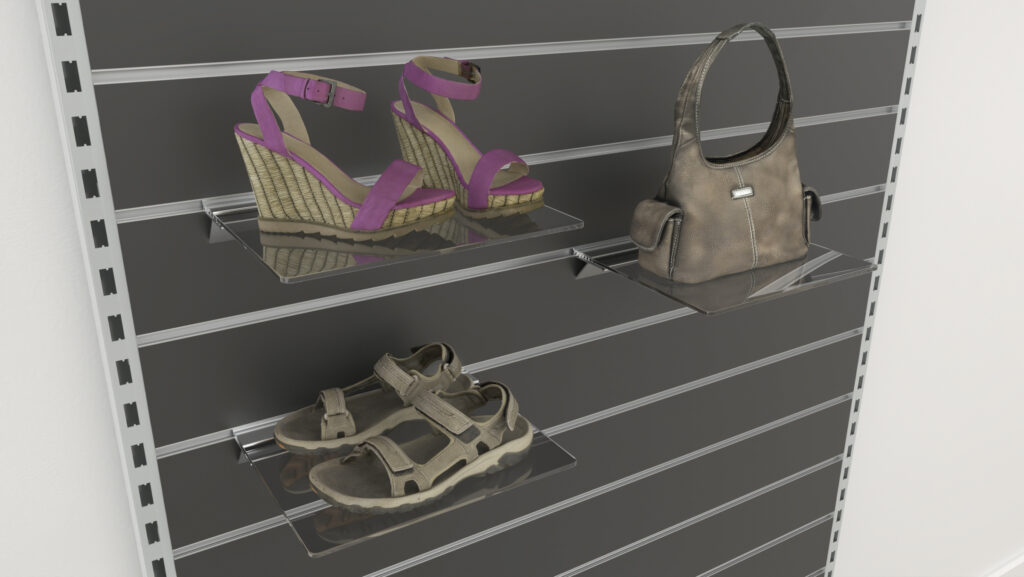

Fashion Shelves

  • Footwear displays
  • Fashion accessories
  • General retail merchandising

Upgrade from traditional brackets to a clean, modern floating shelf system.
