MDF Slatwall Display Systems

Versatile wall-mounted retail display systems designed for structured merchandising and flexible product presentation

System Configuration

We offer panels in both portrait and landscape formats, with a standard finished size of 2400 x 1200mm. Square 1200 x 1200mm panels are packed two per carton, with a half groove to one side, offering ease of handling and redistribution. We also provide a range of cut-to-size panels, with 2mm high-impact edging available where required.

Standard groove centres:

100mm

Optional configurations:

50mm, 75mm, 150mm, 200mm

High-density merchandising for lightweight products

50mm/ 75mm

Reduced density for heavier or premium merchandise such as handbags and footwear

200mm

Materials, Inserts & Trims

Aluminium inserts and trims enhance both the structural performance and visual finish of slatwall display systems.

  • MDF panels with CNC precision slot cutting
  • Aluminium or PVC insert options
  • Aluminium inserts increase load capacity by approx. 50%
  • Aluminium trims improve aesthetics and durability
  • Melamine, woodgrain and painted finishes available

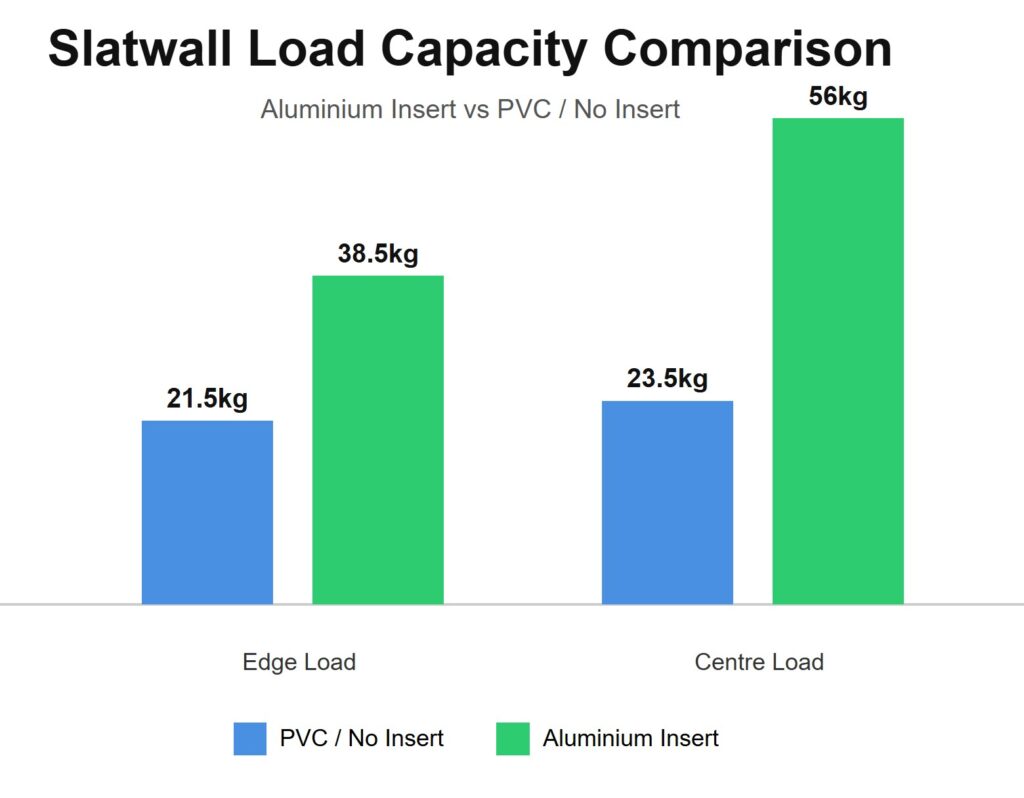

Alu v PVC Insert Load Test Graph

Disclaimer

Test data is indicative and based on controlled internal testing. Load performance may vary depending on board density, installation method, and merchandise distribution. For critical installations, site-specific testing is recommended before full roll-out.

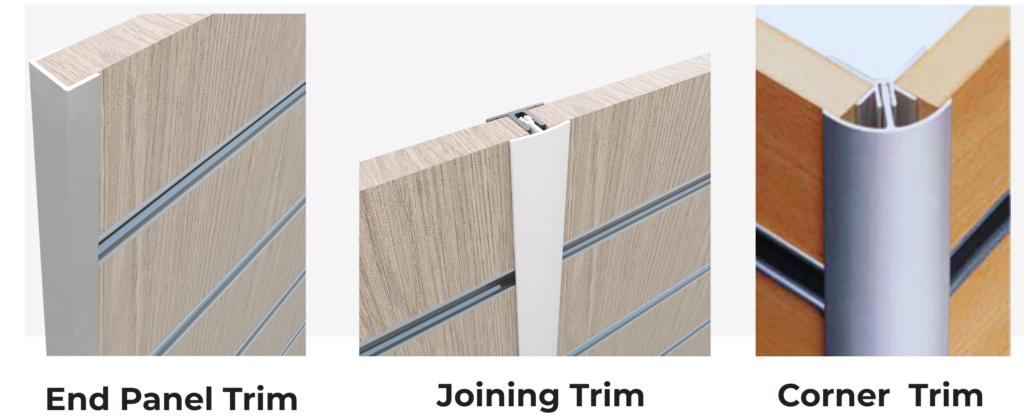

Slatpanel Trims 1024x683 1

Disclaimer

Aluminium trims are used to enhance both the visual finish and edge protection of slatwall panels, ensuring durability in high-traffic retail environments.

Centre Floor Display Systems

Includes the most popular MDF gondolas and display tables designed to integrate with wall systems:

Commercial Performance:

Our centre floor display units are designed not only for flexibility, but to maximise available merchandising space within a store layout.

Typical configurations can deliver substantial increases in usable display area, allowing retailers to present a wider product range within the same footprint.

Depending on the selected unit:

  • G700, G600 and G350 gondolas provide significant vertical merchandising capacity
  • MT100 3 Tier Display and NT100 Nesting Tables enable a flexible product presentation
  • Optimised layouts can increase effective selling space without expanding store size

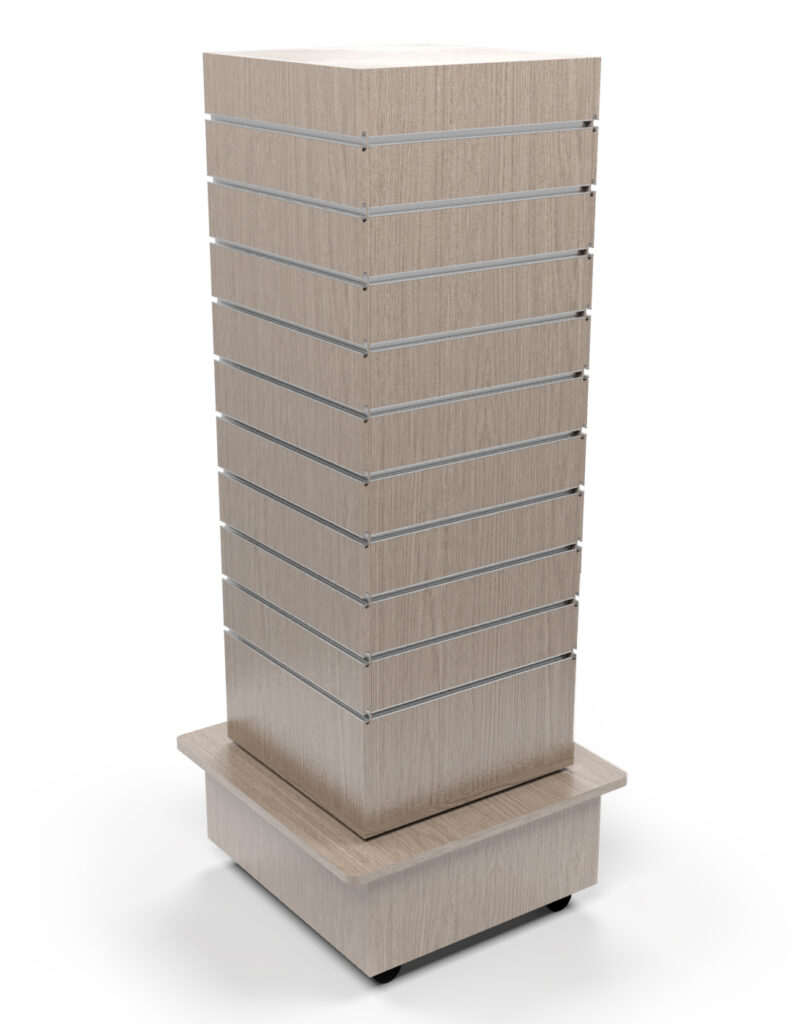

04 G350 Somona Oak v1

G350 Tower Gondola

  • Aluminium Inserts as Standard
  • 1.75m² of Merchandising Area

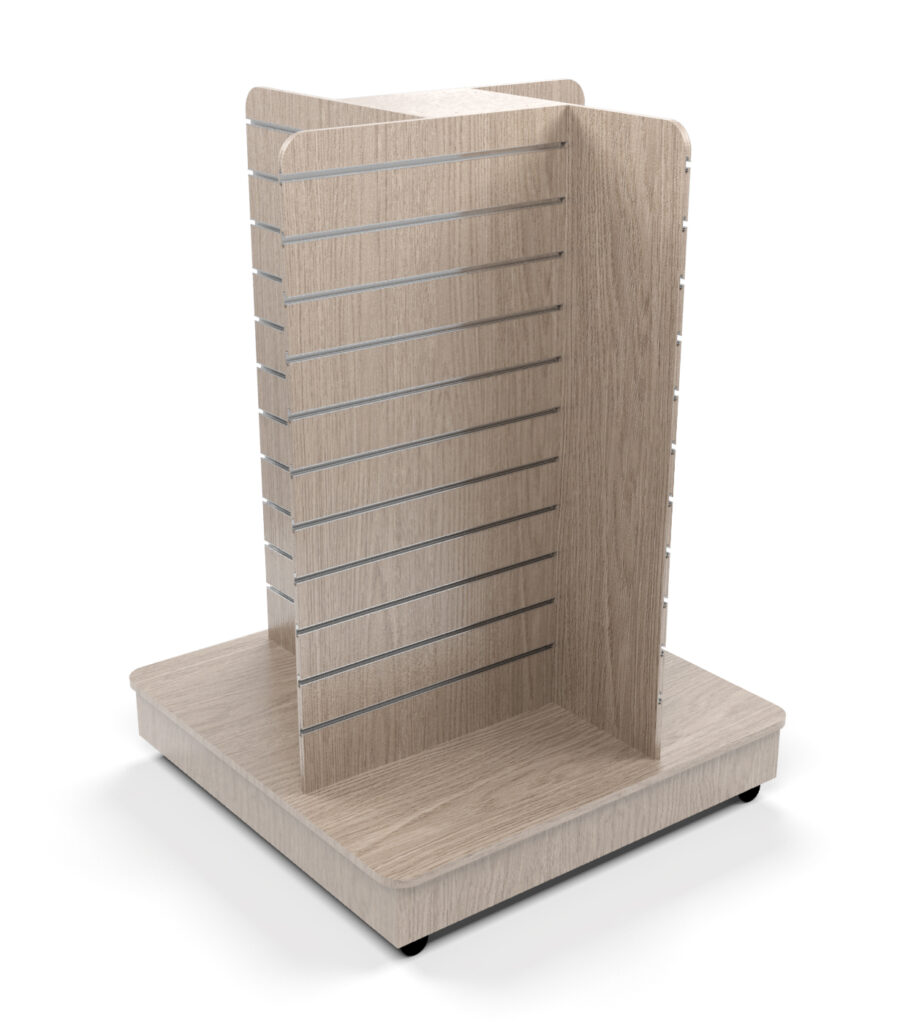

03 G600 Somona Oak v1

G600 4 Way Gondola

  • Aluminium Inserts as Standard
  • 2.88m² of Merchandising Area

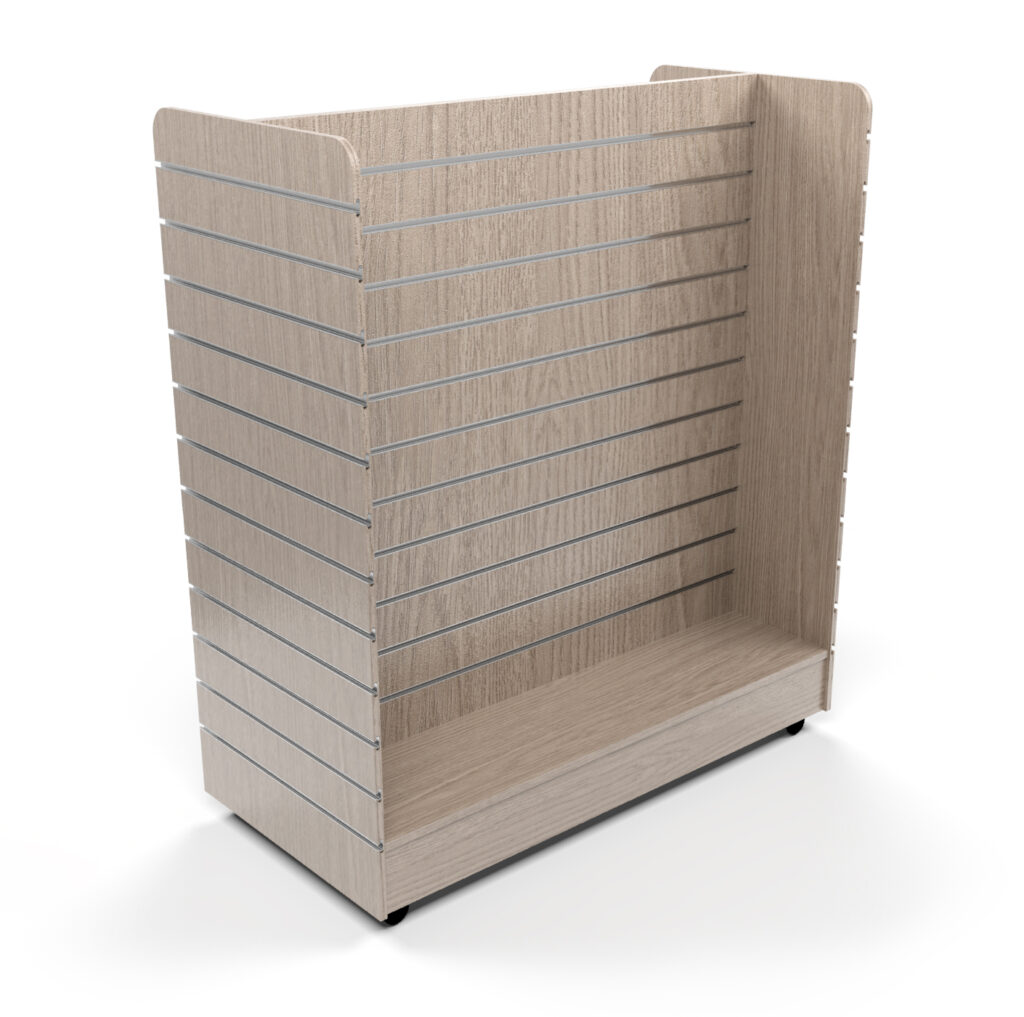

02 G700 Somona Oak v1

G700 ‘H’ Gondola

  • Aluminium Inserts as Standard
  • 4.41m² of Merchandising Area

Operational Efficiency

All of our Gondola centre floor display units are mounted on castors, allowing them to be repositioned in-store without removing merchandise.

This provides a significant operational advantage, as retailers can:

  • Move fully merchandised displays quickly
  • Adjust store layouts without additional labour
  • Respond efficiently to seasonal or promotional changes

This flexibility reduces downtime, improves staff efficiency, and supports more dynamic retail environments.

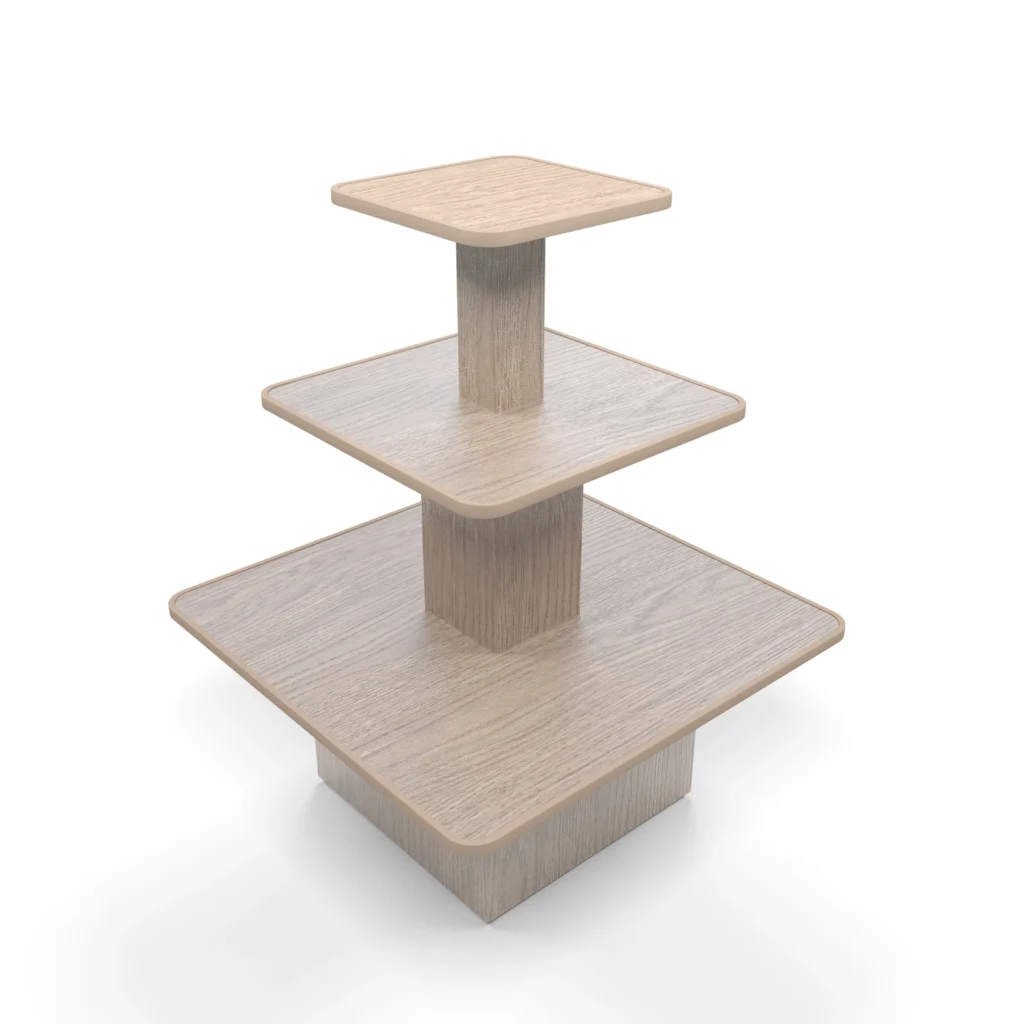

MT100 Somona Oak v1

MT100 3 Tier Display

  • 1.33m² of Merchandising Area
  • Mounted on Adjustable feet

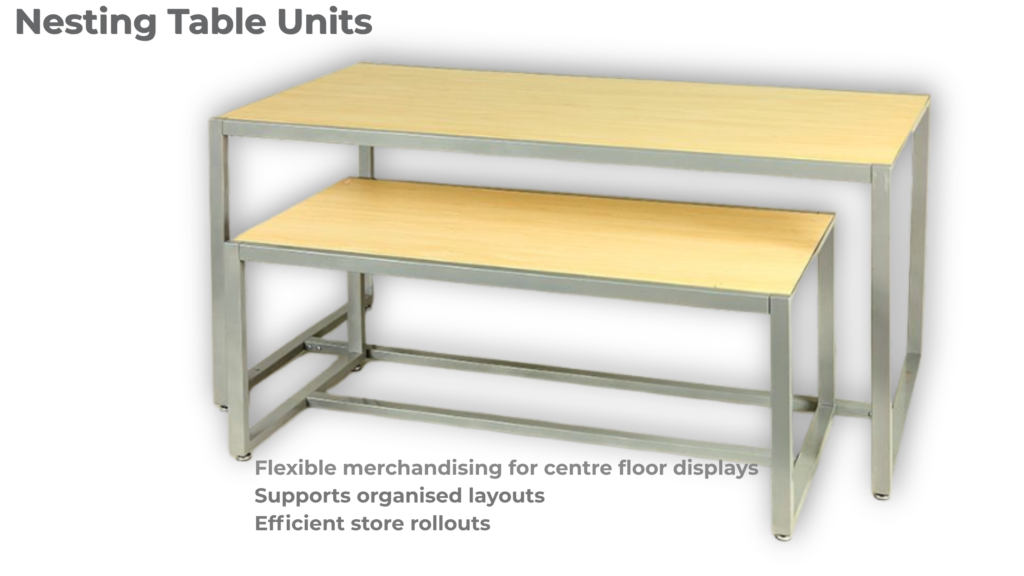

06 Nesting Table Display

NT100 2 Tier Nesting Table Display

  • 1.86m² of Merchandising Area

Custom Display Solutions

Custom-built systems using combinations of MDF panels, slatwall and metal framework depending on project requirements.

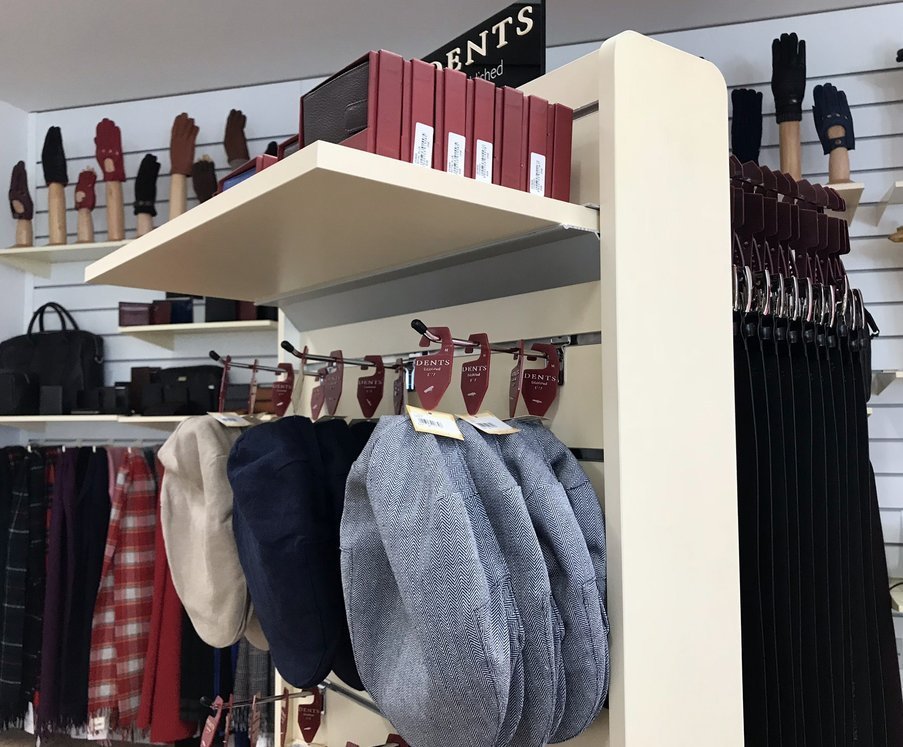

10 Dents Slimline Gondola 735R

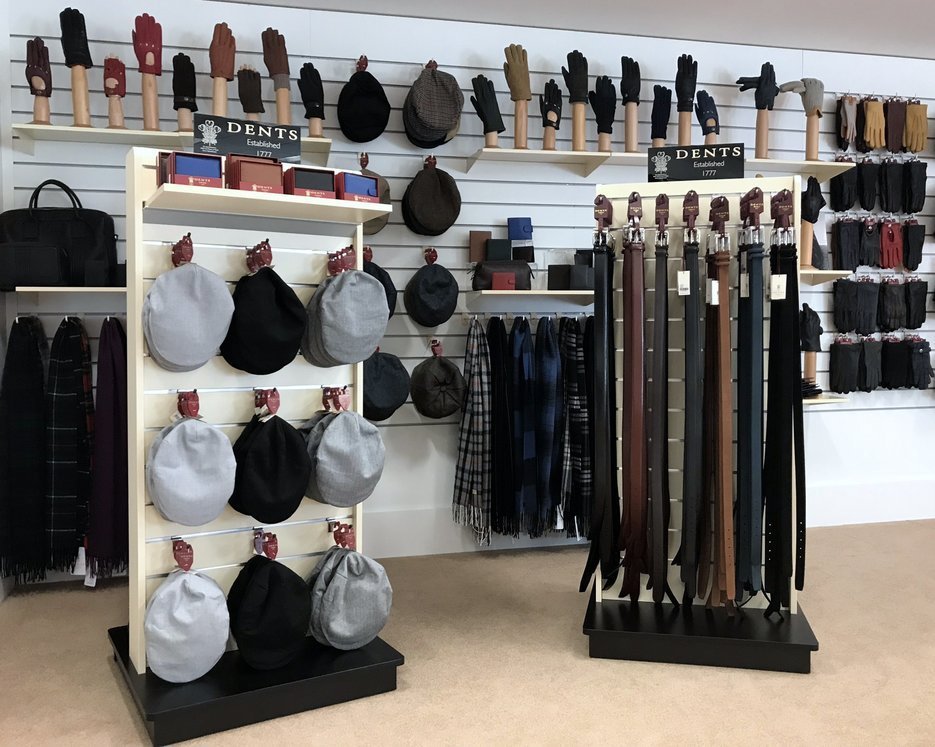

11 Dents Slimline Gondola 728R

Integration with Accessories

Slatwall systems are designed to integrate seamlessly with a wide range of display accessories, allowing flexible merchandising across different retail environments.

Floating Shelf Brackets (FSB)
Ultra-Thin LED Headers
Acrylic display accessories
Metal display accessories

Supply & Logistics

  • Container optimisation
  • Lower MOQ capability
  • Single-source supply

Applications

  • Fashion retail
  • Footwear stores
  • Convenience retail
  • Department stores
